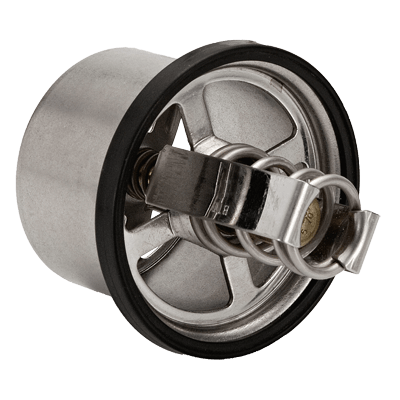

Guascor thermostats
Guascor Thermostats
Description
| Part number | Guascor Part No. | Part Decription | Specification | Temperature |
| 7679002 | 76.79.002 | Thermostat | X2.320.79.100 | 79 - 92 °C |
| 7679005 | 76.79.005 | Thermostat | X2.341.71.100 | 71 - 84 °C |
| 7679008 | 76.79.008 | Thermostat | X2.409.75.100 | 75 - 88 °C |
| 7679009 | 76.79.009 | Thermostat | X2.409.82.100 | 82 - 95 °C |
| 7679014 | 76.79.014 | Thermostat | X2.409.45.100 | 45 - 58 °C |
| 7679021 | 76.79.021 | Thermostat | X2.409.30.100 | 30 - 43 °C |
| 7679024 | 76.79.024 | Thermostat | X2.409.55.100 | 55 - 68 °C |
| 7679031 | 76.79.031 | Thermostat | X2.409.38.100 | 38 - 51 °C |
| 7679033 | 76.79.033 | Thermostat | X2.409.71.100 | 71 - 84 °C |
| 7679036 | 76.79.036 | Thermostat | X2.409.97.105 | 97 -105 °C |
| 7679037 | 76.79.037 | Thermostat | X2.409.79.100 | 79 - 92 °C |

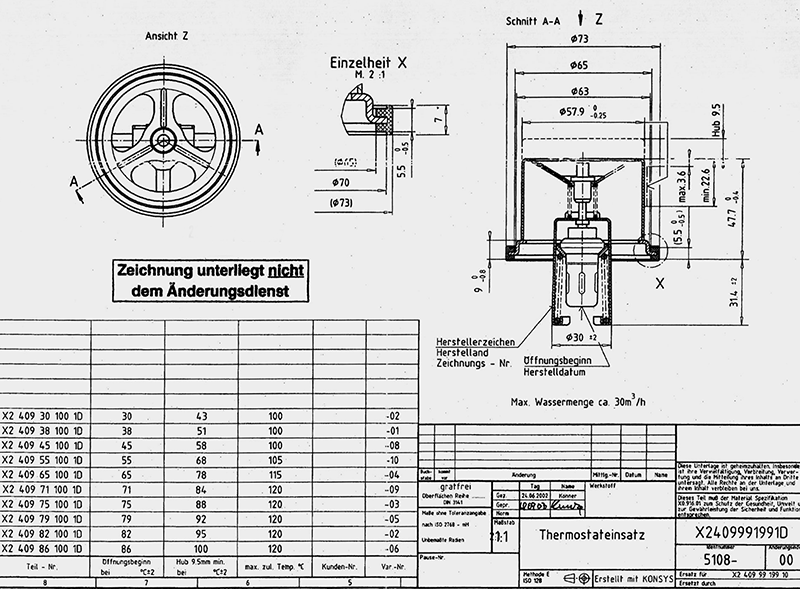

Guascor thermostat technical drawing
(size and opening temperature)
|

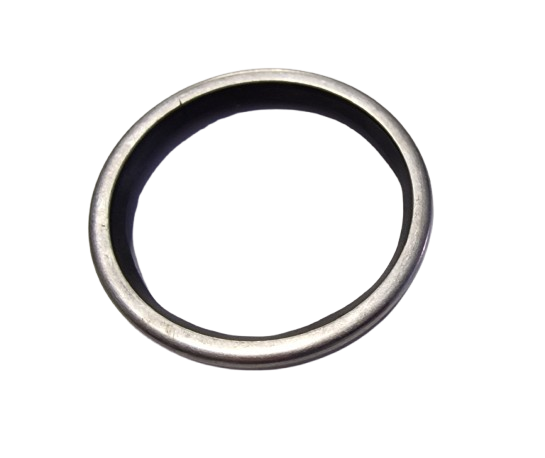

7471157 thermostat housing gasket
|
